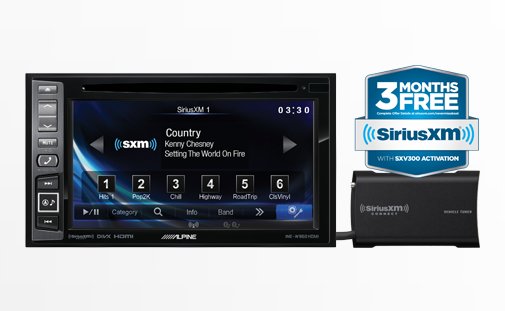

Satellite Radio Tuner Included Sirius Satellite ready The INE-W960HDMI includes a SiriusXM tuner (model number SXV300, subscription required). You’ll have everything you need to your sound experience and expand your entertainment choices. You can take advantage of the “Never Miss a Beat” offer, which gives you three months of SiriusXM’s “All Access” subscription (for details, visit www.getsiriusxm.com/offers/3monthsfree). The “All Access” package is SiriusXM’s most extensive offering and includes a wide variety of commercial-free music, plus live sports, world class talk programming, comedy, news and more. All Access subscribers also get access to SiriusXM programming outside the vehicle on the SiriusXM app and online at http://www.siriusxm.com. The INE-W960HDMI lets you pause, rewind and replay up to 60 minutes of SiriusXM content while listening, and you can program up to 18 dedicated preset soft keys for SiriusXM channels. Did Someone Say More Entertainment? The INE-W960HDMI has got you covered. It's set for DVD, CD, MP3, AAC, WMA playback with a 6.1-inch WVGA touch-screen with a 1.15 million-pixel display. The INE-W960HDMI is versatile to serve as your media center over all in-vehicle digital media sources, all at the touch of your fingertip. The More Maps, the Merrier The INE-W960HDMI offers reliable navigation with preloaded HERE map data of the United States and Canada, including Alaska, Hawaii, Puerto Rico and the Virgin Islands, which translates to maps galore. Choose from different intuitive map view options, such as 3D mapping, split map, and turn-by-turn arrow view. This unit also features Alpine's exclusive Graphical User Interface with intuitive screen graphics, so it's easy for you to find your way. Get quick and easy directions from start to finish. Close Encounters with 3D Maps The INE-W960HDMI uses an enhanced navigation platform, which includes 3D view. Major landmarks, buildings and terrain details in main metropolitan areas are depicted in 3D, for easier recognition while driving. Freeway exit routes and exit signs are presented in vivid 3D detail, to give you a realistic view of where to go. Other navigation features include a highway services list which shows the services at each exit (Gas, Food, ATMs, etc.); Auto Zoom, which delivers proximity zooming as you approach the next driving maneuver; and the freeform search function, which lets you type in the first letters of the destination using the formal name (ex: Alpine) or a category type (ex: Electronics Company). Let Alpine Lead the Way With turn-by-turn instructions delivered by Text-to-Speech (TTS) technology, street names, freeway numbers and freeway exit names are announced clearly through your vehicle’s audio system. Directions are available in English, Spanish, or French. With a unique database of more than seven million POI's (Points of Interest), you can choose from a plethora of places to go, whether you're hungry and looking for a place to eat, or need to fill up at the nearest gas station! Assistive mapping visuals display essential driving information such as One-Way Street icons and Highway Junction View for maneuvering complex interchanges. These extra navigation features help guide you right to your destination! Works with Pandora Internet Radio for iPhone and Android™ Smartphones Works with Pandora Internet Radio for Android and BlackBerry Stream music from your iPhone or Android smartphone using Alpine’s Advanced technology. Enjoy easy, wireless operation of your favorite Pandora channels with Thumbs Up/Thumbs Down buttons directly on the faceplate, QuickSearch features, and even create new Pandora stations and bookmark your favorite tunes on the go. Alpine’s Media Xpander PRO DSP-Sound Expansion circuitry ensures the best possible sound for streaming music from your Pandora connection. Enjoy the same great Pandora features from your iPhone by connecting the optional KCE-461iV iPod/iPhone audio/video cable. Note: Third party services may not be available in all areas; please contact an authorized retailer for coverage in your area. Bluetooth Hands-Free Calling & Audio Streaming BT Plus Don’t fuss or fiddle with your phone and say goodbye to uncomfortable headsets and earpieces. Most importantly, stay focused on safe driving. Many state laws require you to use a hands-free device if you are driving behind the wheel, and with good reason. The perfect way to stay safe and still carry conversations in the car is with the use of a hands-free device. Get the convenience of both with the INE-W960HDMI! This unit is equipped with Bluetooth wireless technology so there is no need for any additional adapters. Microphone Included Microphone IncludedThis unit comes with all that’s needed for Bluetooth convenience. The INE-W960HDMI comes with a tuned microphone that’s engineered to reduce noise interference and feedback. This allows optimal placement in your car, for the best possible sound quality. Audio Streaming, even with iPhone’s iOS 10+ Do you have a large music library on your phone? The INE-W960HDMI can stream and control your phone's music via Bluetooth A2DP and AVRCP profiles. Not only can it control and stream your music through Bluetooth, it can process your music using its built-in Media Xpander PRO DSP Sound Expansion to ensure you get the best sound you deserve. Want to listen to your iPhone without plugging-in? Stream your iTunes music library via Bluetooth. Whether you have music on your iPhone locally or on iTunes Match, the INE-W960HDMI can stream your tunes! Made for iPod / Works with iPhone (optional KCE-461iV cable required) Made for iPod / Works with iPhone It’s convenient to control your iPod or iPhone in the car – enjoy seamless operation of your iPod in addition to full control of all your favorite media sources. Control all search options of your iPod directly from the INE-W960HDMI, via Playlist, Artist, Album, Song, Genre, Podcast, or Composer. The USB connection allows for high-quality iPod playback and delivers an even faster access speed so you’ll find songs as quickly as you expect to find them on your iPod. Get access to and control of all the songs from your iPhone right from the head unit! Large music libraries are no problem with a faster connection speed and QuickSearch featuring Alphabet Search, you can easily scroll through long lists of music by skipping through the letters of the alphabet. Once you find the letter you want, you can jump to the exact song! Visit the Apple site to identify your model iPod. App Direct Mode Listen to even more music from your iPhone or iPod with App Direct Mode. This feature offers basic app control (Play, Pause, Track Forward, Track Back) and displays metadata directly on the head unit from numerous third-party apps so that you can enjoy your drive even more and expand your listening choices without fumbling with your phone. *iPhones with Lightning connector not supported. Super-Fast USB Connection The INE-W960HDMI uses a USB connection for newer iPods that provides ultra-fast digital data transfer so songs and video are loaded instantly through the receiver, on-screen. Thanks to USB, you can also alternatively plug in a USB thumb-drive loaded with music, instead of your iPod or iPhone. Best Sound Quality For unrivaled sound quality, expect nothing less than the best. The INE-W960HDMI uses a 24 Bit DAC for ultimate sound quality with all your digital media sources. Find it Fast with Quick Search and Alphabet Search QuickSearch Have lots of music? Find it fast! With Alpine's exclusive Quick Search technology, you'll be able to find what you want, the quickest and easiest way possible. With so many ways to listen to thousands of songs, now you can get super-fast access to playlist, artist, album, song, podcast, genre and composer, even use Quick Search to access your radio stations. Large control buttons and a Touch Screen make it easy to search all sources, including iPod and Satellite Radio. No interruptions, while you search, so you can keep enjoying your music. For especially big music libraries, the Alphabet Search function allows y-0ou to jump to specific parts of your music library by letter. Save yourself from scrolling through each song one by one, when you can just jump to a segment of your library with a touch of a button. Automatic Time Synchronization No need to worry about figuring out how to set up this clock manually. After the first time you launch and accept navigation mode, the clock syncs up with the internal navigation system, so it automatically adjusts to your time based on your location. Whether you are in Hawaii or New York, the INE-W960HDMI will adjust and display the appropriate time so you don't have to. Selectable Background Color In a different mood? Feel like changing up the background color to match your interior? The INE-W960HDMI offers eight different display base colors to choose from under the settings: blue, light blue, turquoise, green, red, amber, dark yellow and black. Need a power boost? Power Pack Add the KTP-445A Head Unit Power Pack! It delivers a true 45W x 4 RMS power and is compact enough to install behind the INE-W960HDMI or any other tight space. Multi-Camera Options The INE-W960HDMI is equipped with one composite camera input so you can add front or rear view camera systems to your vehicle to make your drive safer. See what's in front or behind your vehicle, right from the screen. For the front of the vehicle connect the HCE-C212F. Rear view camera options include the HCE-C125 and HCE-C114.These camera systems will work directly with the INE-W960HDMI for a clean and easy install. For a complete driving experience, nothing beats adding Alpine’s Active View™ Camera System. The HCE-C305R Active View camera alerts you to moving objects that approach your car while you’re backing up with an audible “beep” and a visual highlight of the moving object right on the INE-W960HDMI’s screen. With the Active View system, avoiding other cars, pedestrians or animals behind your car is easy! Steering Wheel Control Steering Wheel Control Replace the factory-installed head unit without loss of this convenient option. The INE-W960HDMI allows you the option of controlling your head unit right from your factory installed steering wheel controls. (*third party adapter required). If your car has factory Bluetooth steering wheel controls, then they will control your new INE-W960HDMI’s built-in Bluetooth as well. SPECIFICATIONS Features and Specification SPECIFICATIONS CEA-2006 Power Ratings CEA-2006 Power Rating: 4 O @14.4V =1%THD+N, S/N 80dBA (ref.1W into 4 O), 18W x 4 Max Power Output Ratings Max Power Output: 50W x 4 FM Tuner Tuning Range: 87.7-107.9 MHz Mono Usable Sensitivity: 0.8 μV / 9.3 dBf 50dB Quieting Sensitivity: 1.3 μV / 13.5 dBf Alternate Channel Selectivity: 80.0 dB Signal-to-Noise (S/N) Ratio: 65 dB Stereo Separation: 35 dB Capture Ratio: 2.0 dB AM Tuner Tuning Range: 530-1, 710kHz Usable Sensitivity (IEC Standard): 22.5 µV / 27.0 dBf NAVIGATION Installation Angle: Roll: ±10 degrees / Pitch: ±30 degrees / Yaw: ±10 degrees CPU: SiRF Titan GPS: Parallel 12 channels Receiver Internal Storage: Built-in flash memory with Pre-loaded Maps of US, Canada, Puerto Rico, and the Virgin Islands Display Screen Size: 6.1'' Screen LCD Type: Transparent Type TN LCD Operation System: TFT Active Matrix Number of Picture Elements: 1,152,000 pcs. (800 x 3 x 480) Effective Number of Picture Elements: 99.99% Illlumination System: LED Bluetooth® Bluetooth Version: BLUETOOTH V2.1+EDR Output Power: +4dBm Max.(Power class 2) HFP: HFP (Hands Free Profile) HSP: HSP (Head Set Profile) A2DP: A2DP (Advanced Audio Distribution Profile) AVRCP: AVRCP (Audio/Video Remote Control Profile) OPP: OPP (Object Push Profile) PBAP: PBAP (Phone Book Access Profile) Disc Player Frequency Response: 5-20k ±1 dB Channel Separation (at 1kHz): 85dB Dynamic Range (at 1kHz): 95dB Total Harmonic Distortion (at 1kHz): 0.008% Wow & Flutter (%WRMS): Below Measurable Limits Horizontal Resolution: 500 Lines or Greater Video Ouput Level: 1Vp-p (75O) Signal-to-Noise Ratio (video): DVD: 60dB Signal-to-Noise Ratio: 105 dB Connection for USB USB Requirements: USB 1.1/2.0 Max. Power Consumption: 1000 mA USB Class: USB(Play From Device)/USB(Mass Storage Class) File System: FAT 12/16/32 MP3 Decoding: MPEG-1/2 AUDIO Layer-3 WMA Decoding: Windows Media™ Audio AAC Decoding: ACC-LC format''/m4a'' file Number of Channels: 2-Channel (Stereo) Frequency Response: 5-20 kHz ± 1dB (Frequency Response may differ depending on the encoder softwara/bit rate) Total Harmonic Distortion (at 1kHz): 0.008% Dynamic Range (at 1kHz): 95 dB Signal-to-Noise Ratio: 105dB Channel Separation (at 1kHz): 85 dB Sound Tuning Subwoofer Level Adjustment: 0 to 15 steps High Pass Filter: 20~200(Hz), 0/-6/-12/-18/-24(dB/oct), -12~0(dB) Low Pass Filter: MediaXpander Modes: FM/SAT/DVD/CDDA/CMPM/AUX/HD Radio (Level 1, 2, 3, Off) Equalizer: Parametric EQ: 9 Band (20Hz~20kHz, 1/3 oct. Steps), Adjustable level ±9 dB Time Correction: 0.0 - 336.6cm (Front L/R), 0.0 - 9.9ms (Rear L/R), 3.4cm 0.1ms step (Sub.w L/R) Crossover Frequency: HPF/LPF Dimensions Din Size: 2 Chassis Size (W x H x D) mm: 178mm x 100mm x 165mm Chassis Size (W x H x D) in: 7'' x 3-15/16'' x 6-1/2'' Nose Piece Size (W x H x D) mm: TBD Nose Piece Size (W x H x D) in: TBD General Power Requirement: Power Requirement: 14.4 (11-16) V.DC Pre Output Voltage (Before Clipping): 4V Power Consumption: Max: 15A Operating Temperature (°C/ °F): -4°F to +140°F (-20°C to + 60°C) Maximum Mounting Angle: 30° from Horizontal Recommended Accessories HCE-C117D: Direct Connection Rearview Camera HCE-C212F: Multi-view Front Camera HCE-C210RD: Direct Connection Multi-view Rear Camera HCE-C300R: Active view Camera System PXA-H800: System Integration Audio Processor RUX-C800: PXA-H800 Commander KCU-461iV: iPod USB Connecting Cable FEATURES Map & Database Points Of Interest: 6 Million Pre-Loaded Map Database: US, Canada, PR, Virgin Islands Map Icons: User can select to display up to 8 POI icons on map Map Views: North up, heading up, 3D Map Database Update (Method): SD Card Database Smart Key Filtering: Yes Street Name Voice Guidance: Yes Auto-Sort Nearest Destination: Yes Arrival Time: Yes Voice Prompts: Yes Route Guidance Setup: Yes Tuner Memory Presets: Preset Stations (FM:12/AM:6) Memory: Auto Memory Seek Mode: Local/DX Seek Selection Bluetooth® Bluetooth Module Built-In: Bluetooth Module Built-In Hands Free Calling: HFP (Hands-Free Profile) Compatible Music Streaming: A2DP (Advanced Audio Distribution Profile) Compatible Music Streaming Control: AVRCP (Audio/Video Remote Control Profile) Ver.1.4 Compatible Connection: SSP (Secure Simple Pairing) Supported Phone Book: Phone Book Synchronization Phone Book Search: Phone Book Search Function Shortcut Dialing: 4 Preset Memory Multiple Phone Number Registration: 4 Phone Number Registration Possibility Redial Function: Redialing a Number in Outgoing History Call History: Dialled Call, Received Call, Missed Call Display Speech Volume Level Adjustment: Outgoing, Incoming and Ring Tone Volume Adjustment Bluetooth Audio Sound Adjustment: MX Parameter for A2DP Phone Battery Level Indicator: Phone Battery Level Indication Phone Signal Strength Indicator: Phone Signal Strength Indication Firmware Update: Firmware Updatable Microphone: Microphone Included Connection for iPod® Made for iPod/iPhone: Made for iPod/iPhone Compatibility for iPod®/iPhone®: Made for iPod touch 4th/3rd/2nd/1st Gen., iPod nano 6th/5th/4th/3rd/2nd/1st Gen., iPod classic 160GB/120GB/80GB, iPod with video, iPhone 4S, iPhone 4, iPhone 3GS, iPhone 3G and iPhone Connection Type: USB Connection Connection: KCU-461iV (sold separately) Requied Works with Pandora® Internet Radio: Works with Pandora® Internet Radio Music & Video Playback Compatibility: Music & Video Playback Compatible Artwork Display: Artwork Display Available Selections: Playlist, Artist, Album, Song, Podcast, Genre, Composer, Audiobook Alphabet Search: Alphabet Search Function Direct Up/Dn: Playlist, Artist, Album, Podcast, Genre, Composer Up/Down M.I.X. (Shuffle) Capability: Song, Albums, All Repeat: Repeat Song, Battery Charging: Battery Charging Connection for USB USB Connection: USB Extension Cable Included Music File Playback: MP3/AAC/WMA Files Playback Video File Playback: DivX Files Playback USB Class: Mass Storage Class File/Folder Name Search: File/Folder Name Search Tag Info Search: Tag Information Search M.I.X. Random Play: M.I.X. Random Play Repeat: Repeat File/Folder Satellite Radio SiriusXm Ready: SiriusXm Ready (SVX-200 Required) Connection: Simple Plug'N Play Compatible Preset Memory: 18 Preset Memory My Game / My Music Alert: My Game / My Music Alert Compatible Instant Replay: Instant Replay Compatible iTunes® Tagging: iTunes® Tagging Compatible Disc Player Disc Type: DVD/CD Player Disc Playback Type: DVD-Video, DVD±R/RW, CDDA, CD-R/RW Music Playback: DVD-Video, CDDA, MP3/AAC/WMA, Divx Playback DVD Direct Menu Control: DVD Direct Menu Touch Control CD Text Display: CD Text Display CD Text Search: CD Text Search M.I.X. Random Play: One (Folder) / All (Random Play) Random (CD Only) Repeat: Repeat DAC: 24 Bit DAC Sound Tuning Subwoofer Level: Subwoofer Level Adjustment Subwoofer Phase Select: Subwoofer Phase Select (0° or 180°) Equalizer: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country, Classical 9-band Parametric Equalizer: 9-band Parametric Equalizer MediaXpander: MediaXpander Customized Sound Setting by Car Type: iPersonalize Sound Setting Function Time Correction: 6-channel Digital Time Correction Crossover: Digital Crossover Function Application Volume Level Setting: Application Volume Level Setting Sound Setting Data Download: Sound Setting Data Download General Power Output: 50W x 4 High Power Amplifier Display: 6.1'' WVGA High Resolution Display Display Backlighting System: White LED Backlighting System Display Setting: 50:50 Split Screen Compatible Display Color Selection: 5 Background Color (Blue/Green/Red/Amber/Black) Selectable Camera Connection: Alpine Direct Camera Connection Camera Guide Line Adjustment: Camera Guide Line Adjustment AUX Input: 1 A/V Input PreOut: 3 PreOuts (2V, Front/Rear/Subwoofer) Steering Wheel Remote Control Ready: Steering Wheel Remote Control Ready Live Contrast Adjustment: Live Contrast Adjustment Clock: Clock DIN Trim Plate: Detachable Trim Plate Face Plate: Detachable Face Plate Auto Dimmer: Auto Dimmer Power Antenna Lead: Power Antenna Output Remote Turn-On: Remote Turn-On Output Audio Interrupt: Audio Interrupt Input Remote Control Ready: Remote Control Ready Mute: Mute Function Firmware Updatable: Firmware Updatable
