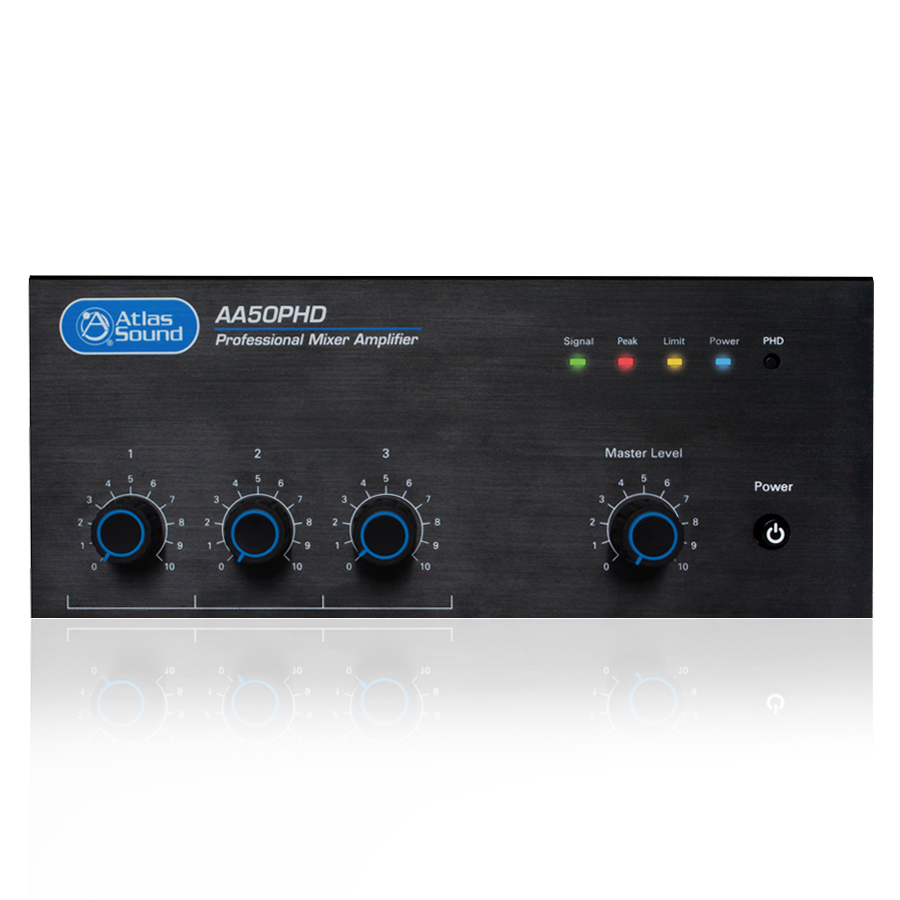

AtlasIED AA50PHD
AtlasIED AA50PHD 0
AtlasIED AA50PHD 1
AtlasIED AA50PHD 2

AtlasIED AA50PHD

Model #: AA50PHD
552576
AtlasIED
At a Glance
4-INPUT, 50-WATT MIXER AMPLIFIER WITH AUTOMATIC SYSTEM TEST (PHD)
Available in Store Only
$499.95Save $NaN
$499.95

Get to know this product.

FEATURES

  • 50W into 25V/70.7V and 4O Loads
  • Rear Mounted DIP Switch Allows Mute Receive for Inputs 2 and 3
  • Contact Closure Mute Terminals
  • Variable Mute Sensitivity Control for Input 1
  • Preamp In for External Processors
  • Line Output
  • Remote Input Select (RIS)
  • Remote Level Control
  • Input Assignable Zone 2 Output
  • Two Unbalanced, Summing Line Level Inputs
  • Balanced Mic/Line/Tel Input w/ Phantom Power
  • Automated Diagnostic System Test (Push Here Diagnostic®)

SPECIFICATIONS

  • Frequency Response - 50Hz - 15kHz
  • Connector Type - 4 Position Phoenix 3.5mm Pitch
  • Power Output - Max. Average Power @ 50Hz-15kHz with .5% THD, 4O 50W RMS
  • Height - 3.66" (93mm)
  • Width - 8.27" (210mm)
  • Depth - 10.87" (276mm)
  • Weight - 10.5lb
  • Shipping Weight - 12.4lb
  • Voltage Compatibility - 110V - 120V
Specifications
