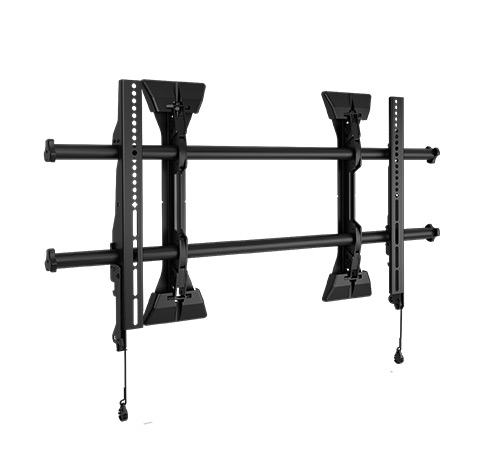

Chief® Professional AV Solutions Black Fusion™ Large Wall Mount
Chief® Professional AV Solutions Black Fusion™ Large Wall Mount 0
Chief® Professional AV Solutions Black Fusion™ Large Wall Mount 1

Chief® Professional AV Solutions Black Fusion™ Large Wall Mount

Model #: LSM1U-G
83304
Chief
At a Glance
Installer-inspired Fusion fixed mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.
Available in Store Only
$250.40

People also viewed:

Get to know this product.

Chief upgraded fixed wall mounts based on installer feedback and direct observations of installers in the field. Many new features join Fusion favorites like Centerless shift, ControlZone leveling adjustment and ClickConnect Latching.

New benefits included added stability, faster install, improved lateral shift, easier cable management and enhanced security.

  • Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall
  • ControlZone Leveling for post-installation fine tuning of height and leveling
  • Centerless Shift provides up to 17.4" (441 mm) of post-installation lateral shift for limitless centering
  • Set screws keep the mount rigid, stable and secure throughout the life of the installation
  • ClickConnect offers an audible click when the screen safely engages with the mount
  • Built-in cable stand provides easy access under the screen
  • A full line of accessories can be installed with the mount and the entire unit can be adjusted together
  • Multiple installation options for various stud distances
  • Exclusive nesting spacers can be stacked to achieve any depth
  • Quick-Store Cords use magnets to easily store and access pull cords
  • Improved cable management with new end caps
  • Integrated Security
  • Ships with a custom hardware kit that can be hung from mount rails if installing in stages
  • Easy Open box with less waste to throw away
Specifications

General

CertificationsTAA Compliant, UL Listed, OSHPD Approved
ColorBlack
Lateral Shift17.4" (441 mm)
Manual Height Adjustment1" (25 mm)
Minimum Depth2" (51 mm)
Mounting Pattern Compatibility (Universal Versions)100 x 100 mm - 871 x 500 mm
Overall Dimensions (H x W x D)18.25 x 34.75 x 2" (464 x 883 x 51 mm)
Shipping Weight9 kg
Solution TypeUniversal
Typical Screen Sizes42 - 86"
Wall Stud Compatibility In16" - 32" (406 mm - 813 mm)
Weight Capacity200 lbs (90.7 kg)
OrientationLandscape

Misc. Specs

Product Weight (lbs.)22
Depth (in.)2
Width (in.)34.75
Height (in.)18.25
TV Size's up to (in.)63
Weight Capacity (lbs.)200
Mounting LocationWall
