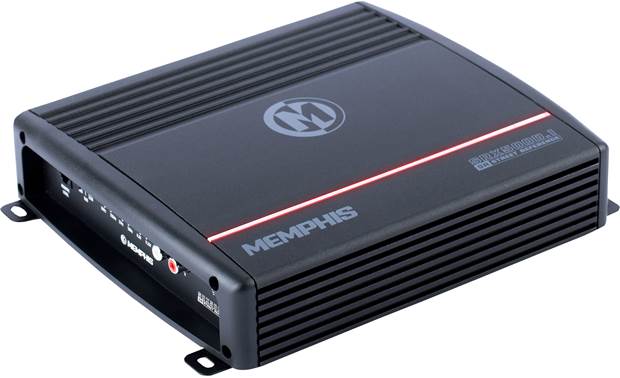

Memphis Audio SRX500D.1

Product Overview

Description

Street Reference amplifiers are the ultimate combination of performance, style and value. They feature a bold new look complemented by an ultra-bright micro-LED strip. These amplifiers bright solid performance without breaking the bank.

Features

Textured aluminum heatsink

High level inputs

Selectable bass boost on all models

Remote level control/bass knob (mono amps)

Variable crossover network

Protection Circuitry

The amplifier features built-in circuitry to protect the against overload, short circuit, overheating, and reverse polarity. The LED on the side of the amplifier will glow red when the amplifier shuts down in any of these cases.

Controls

Gain: rotary control to match the amplifier to the output of the source unit; variable from 100mV to 6.0V

Sub Sonic: high pass frequency to remove frequencies that can't be reproduced by your sub; continuously variable from 15 Hz to 50 Hz

LPF: low pass frequency; continuously variable from 30 Hz to 250 Hz; the low pass crossover is always engaged (it cannot be bypassed)

Bass EQ: 3-position switch; set bass boost to 0 dB, 6 dB, or 12 dB; centered at 45Hz

Remote Level Control

Included with the amplifier is a remote level control module. The module mounts under your dashboard or on the center console, and allows you to raise and lower the subwoofer output relative to the rest of the system. The Remote Level control comes with a 16¼' cable and mounting screws.

Remote Dimensions

Width: 1½" (2?" including mounting flange)

Height: ¾"

Depth: 1½" (2" including knob and wire)

Connections

All the connections are nickel-plated to resist corrosion.

Input: stereo RCA inputs

Fuses: two 25-amp ATO (blade) fuses installed on the end of the amplifier; 50-amp fuse (minimum) also required on the power wire within 18" of the battery

Power/Ground: screw-down terminals, 0.5" wide, will accept bare wire or spade connectors (4-gauge minimum recommended)

Remote Turn-on: screw-down terminal, 0.35" wide, will accept bare wire or spade connector

Speaker Output: 2 pair of screw-down terminals (internally wired in parallel to easily connect two subwoofers), 0.35" wide, will accept bare wire or spade connectors

Remote: RJ-25 modular phone jack
