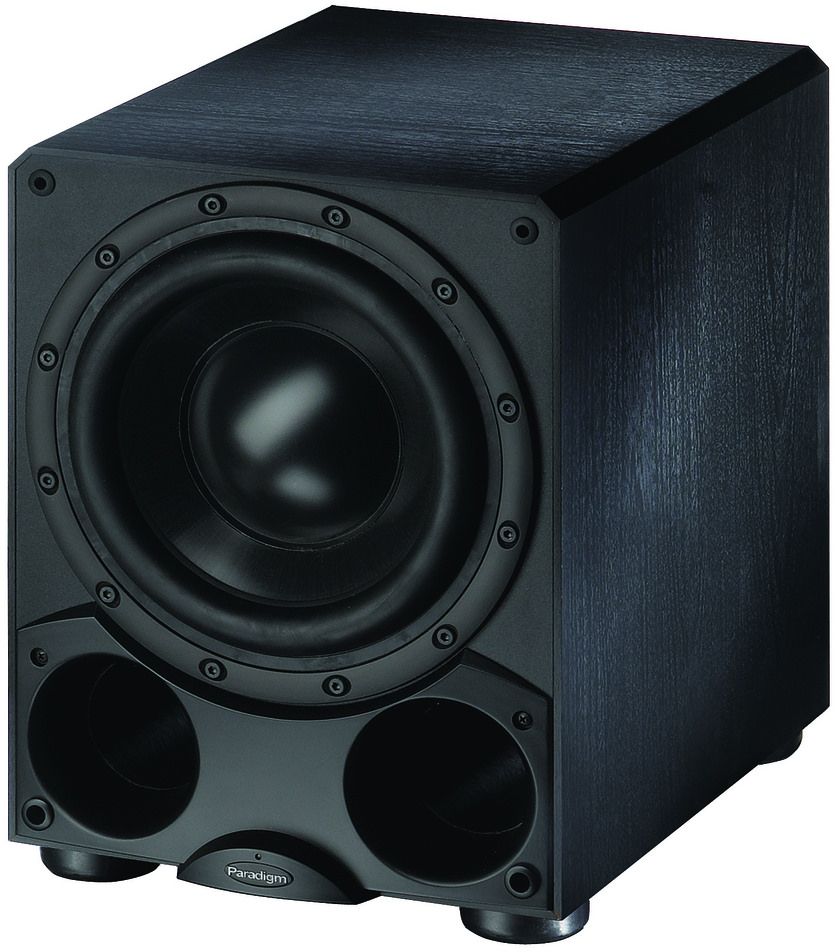

Paradigm® DSP Series 10" Subwoofer-Black Ash

Paradigm

Model #:

DSP-3100

CLEARANCE

At a Glance

Product Dimensions 16.25"h x 12.25"w x 16.75"d

Paradigm® DSP Series 10" Subwoofer-Black Ash with USB port and PBK interfaceRead More

Available in Store Only
Sale $499.00

$700.00

Save $201.00

Get to know this product.

Product Overview

Product Overview

High-power DSP Series subwoofers are the result of Paradigm’s multi-year R&D effort to achieve exceptional high performance while accommodating the growing desire for installation flexibility. Not everyone wants a high-performance subwoofer on full display, so models are front-firing and front-ported with removable grilles, making them ideal for “hidden” installations. For those who want it all … exceptional high performance (including the sonic benefits of digital signal processing!), a smaller footprint, flexible placement options and killer price points, DSP subwoofers fit the bill.

Control Facilities:

  • Auto On/Off
  • Subwoofer Level
  • Subwoofer Cut-Off Frequency (continuously variable 35 Hz – 150 Hz);
  • Bypass Option
  • Sub/Sat Phase Alignment (0° to 180°)
  • USB Port/PBK Interface

Input Facilities:

  • Line-level Inputs

Additional Features

  • Advanced High-Power Class-D™ Amplifiers deliver massive amounts of high-current power with minimal distortion. 900 watts Dynamic Peak / 300 watts RMS.
  • Forward-Firing Drivers with Advanced CAP™ Carbon / Aramid-Fiber Polypropylene Cones. Advanced cone material combines exceptional stiffness/low mass with excellent internal damping for tremendous freedom from unwanted resonances.
  • Advanced Suspension Design and Large Magnet Structures encourage extended cone excursion while maintaining superb control over cone movement.
  • High-Efficiency Dual-Ported Design. High-velocity low-noise ports with critically flared openings serve to reduce turbulence distortion. Front-ported design accommodates installation flexibility.
  • Removable Grilles with AVS™ Airflow Ventilation System allow release of the enormous air pressure generated by these high-output designs.
  • Acoustically Inert MDF Enclosures serve to limit unwanted panel resonances and vibrations, ensuring clean, clear and very articulate bass performance.
Useful Documents
Product Manual
Specification Sheet
Specifications

General Specs

Product Weight (lbs.)40
Depth (in.)16.75
Width (in.)12.25
Height (in.)16.25
Maximum Power Handling (Watts)600
Connector TypeRCA

Connections

Analog Audio(RCA) Input:1

Construction

Driver Component Size:10"

Features

Phase Switch:Yes

Other

Sold As:Each

Specifications

Speaker Type:Single driver Subwoofer

Styling

Color:Black Ash
